UiPath Orchestrator on the AWS Cloud

Quick Start Reference Deployment

QS

March 2021
Adrian Tudoran, Andrei Barbu, and Binoy Das, UiPath
Shivansh Singh and Tony Bulding, AWS Quick Start team

Visit our GitHub repository for source files and to post feedback, report bugs, or submit feature ideas for this Quick Start.

This Quick Start was created by UiPath in collaboration with Amazon Web Services (AWS). Quick Starts are automated reference deployments that use AWS CloudFormation templates to deploy key technologies on AWS, following AWS best practices.

Overview

This Quick Start reference deployment guide provides step-by-step instructions for deploying UiPath Orchestrator on the AWS Cloud. UiPath Orchestrator is the centralized robot management tool where you can deploy, secure, and manage your UiPath software robots at scale.

This Quick Start deploys UiPath Orchestrator. A Quick Start reference deployment for UIPath Robot on AWS is also available. UiPath Robot is the implementation agent of UiPath that runs automation processes you design in UiPath Studio.
Amazon may share user-deployment information with the AWS Partner that collaborated with AWS on the Quick Start.

UiPath Orchestrator on AWS

With UiPath Orchestrator, you can securely schedule, manage, and control your entire enterprise-wide digital workforce of UiPath software robots. Orchestrator manages the creation, monitoring, and deployment of RPA resources in your environment, acting as an integration point with third-party solutions and applications.

UiPath Orchestrator can manage your entire fleet, including the following UiPath Robot types:

  • Attended - A robot triggered by user events, operating alongside a human user, and sharing the same workstation. Used with UiPath Orchestrator for centralized process deployment and logging. They can also add data into a queue that is processed by unattended UiPath Robots.

  • Unattended - A robot that runs without human supervision in a virtual environment. They run, monitor, schedule, and support work queues remotely.

  • Development - An unattended robot used only for development purposes.

  • Nonproduction - An unattended robot used only for development and testing purposes.

AWS costs

You are responsible for the cost of the AWS services and any third-party licenses used while running this Quick Start. There is no additional cost for using the Quick Start.

The AWS CloudFormation templates for Quick Starts include configuration parameters that you can customize. Some of the settings, such as the instance type, affect the cost of deployment. For cost estimates, see the pricing pages for each AWS service you use. Prices are subject to change.

After you deploy the Quick Start, create AWS Cost and Usage Reports to deliver billing metrics to an Amazon Simple Storage Service (Amazon S3) bucket in your account. These reports provide cost estimates based on usage throughout each month and aggregate the data at the end of the month. For more information, see What are AWS Cost and Usage Reports?

Software licenses

A license for UiPath is required. To sign up, contact UiPath sales. A free 60-day non-production trial license is available.

During deployment, provide your UiPath Orchestrator and UiPath High-Availability add-on license keys on the Specify stack details page. For more information, see Launch the Quick Start. Or, manually enter the license keys after the stack is deployed.

The Quick Start uses only uses Microsoft Windows images and the Red Hat Enterprise Linux distribution, provided by AWS. An Amazon Machine Image (AMI) subscription is not required.

Architecture

Deploying this Quick Start for a new virtual private cloud (VPC) with default parameters builds the following UiPath Orchestrator environment in the AWS Cloud.

Architecture
Figure 1. Quick Start architecture for UiPath Orchestrator on AWS

As shown in Figure 1, the Quick Start sets up the following:

  • A highly available architecture that spans two or more Availability Zones.*

  • A virtual private cloud (VPC) configured with public and private subnets, according to AWS best practices, to provide you with your own virtual network on AWS.*

  • In the public subnets:

    • A Windows bastion host to control inbound Remote Desktop Protocol (RDP) access to Amazon Elastic Compute Cloud (Amazon EC2) instances in the private subnets.*

    • AWS Storage Gateway providing the file gateway virtual machine image.

    • An Amazon EC2 instance hosting the file gateway.

    • Security groups for fine-grained inbound access to file gateway and bastion host instances.

  • In the private subnets:

    • An Amazon EC Auto Scaling group with up to 20 UiPath Orchestrator nodes. Nodes are hosted on Amazon EC2 instances running Microsoft Windows Server 2019.

    • A database subnet group for Amazon Relational Database Service (Amazon RDS) DB instances running SQL Server.

    • An Application Load Balancer to balance traffic between UiPath Orchestrator nodes.

    • High-availability add-on for UiPath Orchestrator in a three-node cluster of Amazon EC2 instances with Red Hat Enterprise Linux.

    • Security groups for fine-grained access to UiPath Orchestrator and high-availability add-on instances.

  • AWS Certificate Manager for domain registration with a Secure Sockets Layer certificate.

  • Amazon Route 53 as Domain Name System provider to route traffic to the Application Load Balancer.

  • Amazon CloudWatch for log collection, storage, and analysis, and to enable complete visibility of robots and automation tasks.

  • Amazon S3 bucket for NuGet packages, the automation projects run by UiPath software robots.

  • AWS Identity and Access Management (IAM) role granting access to the S3 bucket to AWS Storage Gateway.

*The template that deploys the Quick Start into an existing VPC skips the components marked by asterisks and prompts you for your existing VPC configuration.

Planning the deployment

Specialized knowledge

This deployment requires a moderate level of familiarity with AWS services. If you’re new to AWS, see Getting Started Resource Center and AWS Training and Certification. These sites provide materials for learning how to design, deploy, and operate your infrastructure and applications on the AWS Cloud.

This Quick Start also assumes familiarity with AWS Services listed in the Resources section, later in this guide.

AWS account

If you don’t already have an AWS account, create one at https://aws.amazon.com by following the on-screen instructions. Part of the sign-up process involves receiving a phone call and entering a PIN using the phone keypad.

Your AWS account is automatically signed up for all AWS services. You are charged only for the services you use.

Technical requirements

Before you launch the Quick Start, review the following information and ensure that your account is properly configured. Otherwise, deployment might fail.

Resource quotas

If necessary, request service quota increases for the following resources. You might request quota increases to avoid exceeding the default limits for any resources that are shared across multiple deployments. The Service Quotas console displays your usage and quotas for some aspects of some services. For more information, see What is Service Quotas? and AWS service quotas.

Resource This deployment uses

VPCs

1

Subnets

Up to 6

NAT gateways

2

VPC endpoints

1

Internet gateways

1

Elastic IP addresses

Up to 6

AWS Identity and Access Management (IAM) security groups

1

IAM roles

Up to 8

Storage gateway

1

Auto Scaling groups

1

Application Load Balancers

1

Public certificate authorities (CA)

1

Hosted zone

1

RDS instances

1

RHEL instances

3

Bastion hosts

1

Supported Regions

This Quick Start supports the following Regions:

  • us-east-1 (N. Virginia)

  • us-east-2 (Ohio)

  • us-west-1 (N. California)

  • us-west-2 (Oregon)

  • ca-central-1 (Canada)

  • eu-central-1 (Frankfurt)

  • eu-west-1 (Ireland)

  • eu-west-2 (London)

  • eu-west-3 (Paris)

  • eu-north-1 (Stockholm)

  • sa-east-1 (São Paulo)

  • ap-south-1 (Mumbai)

  • ap-northeast-1 (Tokyo)

  • ap-northeast-2 (Seoul)

  • ap-southeast-1 (Singapore)

  • ap-southeast-2 (Sydney)

Certain Regions are available on an opt-in basis. For more information, see Managing AWS Regions.

EC2 key pairs

Make sure that at least one Amazon EC2 key pair exists in your AWS account in the Region where you plan to deploy the Quick Start. Make note of the key pair name. You need it during deployment. To create a key pair, see Amazon EC2 key pairs and Linux instances.

For testing or proof-of-concept purposes, we recommend creating a new key pair instead of using one that’s already being used by a production instance.

IAM permissions

Before launching the Quick Start, you must sign in to the AWS Management Console with IAM permissions for the resources that the templates deploy. The AdministratorAccess managed policy within IAM provides sufficient permissions, although your organization may choose to use a custom policy with more restrictions. For more information, see AWS managed policies for job functions.

Prepare your AWS account

Key pair

Make sure that at least one Amazon EC2 key pair exists in your AWS account in the Region where the Quick Start is deployed. Save the key pair name, as you need it during deployment. To create a key pair, follow the instructions in Amazon EC2 key pairs and Linux instances. For testing or proof-of-concept purposes, we recommend creating a new key pair instead of using one that’s already being used by a production instance.

SSL certificate

This Quick Start requests a certificate from AWS Certificate Manager. It uses DNS certificate validation, using the DNS for the hosted zone that you have set up. If you already have a public certificate that you want to use, you can do so by providing the certificate’s Amazon Resource Number (ARN).

Valid domain name

This Quick Start assumes you have established ownership of the parent domain under which the web application will be served. You should have a hosted zone set up in your AWS account, with the required name server, start of authority, CNAME, and text records. For further details on how to create a public hosted zone, see Working with public hosted zones.

Prepare your UiPath account

This Quick Start uses AWS owned Amazon Machine Images (AMI). However, during the initiation of EC2 virtual machines (VMs), it downloads, installs, and configures UiPath Orchestrator and HAA. Before deployment, purchase UiPath Orchestrator and HAA add-on licenses by contacting UiPath directly.

Deployment options

This Quick Start provides a two deployment options:

  • Deploy UiPath Orchestrator into a new VPC. This option builds a new AWS environment consisting of the VPC, subnets, NAT gateways, security groups, bastion hosts, and other infrastructure components. It then deploys UiPath Orchestrator into this new VPC. To set up the networking and routing infrastructure, you only provide the CIDR block for the VPC that you want to create. However, you can configure instance types and software settings such as license keys, user names, and passwords, as discussed later in this guide.

  • Deploy UiPath Orchestrator into an existing VPC. Provisions resources into your existing AWS VPC.

Deployment steps

Sign in to your AWS account

  1. Sign in to your AWS account at https://aws.amazon.com with an IAM user role that has the necessary permissions. For details, see Planning the deployment earlier in this guide.

  2. Make sure that your AWS account is configured correctly, as discussed in the Technical requirements section.

Launch the Quick Start

You are responsible for the cost of the AWS services used while running this Quick Start reference deployment. There is no additional cost for using this Quick Start. For full details, see the pricing pages for each AWS service used by this Quick Start. Prices are subject to change.

Each deployment takes about 25 minutes to complete.

  1. Sign in to your AWS account, and launch the AWS CloudFormation template.

Deploy UiPath Orchestrator into a new VPC on AWS

View template

Deploy UiPath Orchestrator into an existing VPC on AWS

View template

  1. Check the AWS Region that’s displayed in the upper-right corner of the navigation bar, and change it if necessary. This Region is where the network infrastructure for UiPath Orchestrator is built. The template is launched in the us-east-1 Region by default.

  1. On the Create stack page, keep the default setting for the template URL, and then choose Next.

  2. On the Specify stack details page, change the stack name if needed. Review the parameters for the template. Provide values for the parameters that require input. For all other parameters, review the default settings and customize them as necessary. For details on each parameter, see the Parameter reference section of this guide. After reviewing and customizing the parameters, choose Next.

  1. On the Configure stack options page, you can specify tags (key-value pairs) for resources in your stack and set advanced options. When you’re finished, choose Next.

  2. On the Review page, review and confirm the template settings. Under Capabilities, select the two check boxes to acknowledge that the template creates IAM resources and might require the ability to automatically expand macros.

  3. Choose Create stack to deploy the stack.

  4. Monitor the status of the stack. When the status is CREATE_COMPLETE, the UiPath Orchestrator deployment is ready.

  5. Use the values displayed in the Outputs tab for the stack, as shown in Figure 2, to view the created resources.

cfn_outputs
Figure 2. UiPath Orchestrator outputs after successful deployment

Test the deployment

  1. Verify that UiPath Orchestrator is deployed successfully by navigating to the Application Load Balancer endpoint URL. The Login screen shown in Figure 3 will display.

test1
Figure 3. Test the deployment
  1. Verify that HAA nodes are deployed successfully. From the bastion host, navigate to any endpoint IP address via https://haa-ip:8443.

test2
Figure 4. Logging into High Availability Add-on

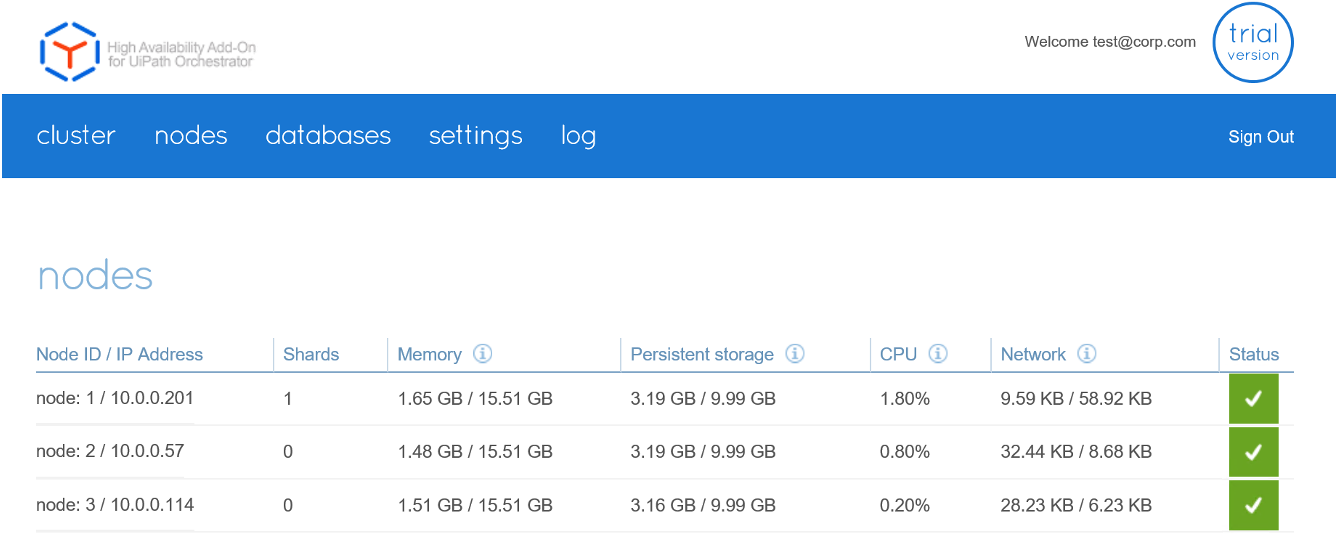

  1. Log in, and verify that all nodes are present on the Nodes tab.

test3
Figure 5. Verifying nodes
  1. Verify that UiPath Orchestrator can upload to the S3 bucket via the file gateway server. To do this, navigate to the Application Load Balancer endpoint URL and log in. Then, choose Packages> Upload button > Select a NuGet package and choose Upload.

test4
Figure 6. Test the deployment

Create a key pair

Amazon EC2 uses public-key cryptography to encrypt and decrypt login information. In Windows instances, the key pair obtains the administrator password from the Amazon EC2 console and then logs in using RDP. On Linux, the key pair authenticates the SSH (Secure Shell) login. For more information, see Amazon EC2 key pairs and Linux instances.

To create a key pair in your preferred Region, do the following:

  1. In your AWS Management Console, choose an AWS Region.

  2. On the Services menu, choose EC2.

  3. Under Network and Security, choose Key Pairs.

  4. Choose Create Key Pair.

  5. Enter a name and choose Create.

Key pair
Figure 7. Create key pair

Create IAM user

A user login with programmatic access to following AWS services is required to launch the Quick Start CloudFormation stack.

  • AWS CloudFormation

  • AWS IAM, Amazon EC2

  • Amazon S3

  • Amazon RDS

  • Amazon Route53

  • AWS Certificate Manager

  • AWS Elastic Load Balancer

  • AWS Lambda

  • AWS Storage Gateway.

If you do already have an IAM user with full access to these services, or have administrator access, you can skip this section.
  1. If you do not already have such an IAM user, create one from AWS console. In Figure 8, a user is created with programmatic and console access.

IAM
Figure 8. Adding an IAM user
  1. To follow AWS best practices, allow access to required services. When setting permissions for the user, choose Attach existing policies directly. Then choose roles with full access for each of the services listed previously.

IAM
Figure 9. Setting permissions
As shown in Figure 9, you can filter the list using the search box.
  1. Choose Next: Tags and optionally add a Name tag to identify the user.

    IAM
    Figure 10. Adding optional tags
  1. Choose Next: Review and verify that the user is configured with full access to the services listed previously.

    IAM
    Figure 11. Reviewing user details
  1. Choose Create User.

  2. Choose Download .csv to download and store the user’s security credentials in CSV format for future reference.

IAM
Figure 12. IAM user created

Purchase UiPath license

This Quick Start uses AWS owned AMI. However, during initiation of EC2 VMs, it downloads, installs, and configures UiPath Orchestrator and HAA add-on software. Before deployment, purchase UiPath Orchestrator and HAA add-on licenses by contacting UiPath directly.

Best practices for using UiPath Orchestrator on AWS

High availability and disaster recovery

Amazon EC2 provides the ability to place instances in multiple locations composed of AWS Regions and Availability Zones. Regions are dispersed and located in separate geographic areas. Availability Zones are distinct locations within a Region isolated from failures in other Availability Zones. They provide inexpensive, low-latency network connectivity to other Availability Zones in the same Region.

To make sure that an application is closer to certain customers, or for legal or design requirements, you can launch instances in separate Regions. By launching your instances in separate Availability Zones, you can protect your applications from the failure of a single location. Microsoft Exchange provides infrastructure features that complement the high availability and disaster recovery (DR) scenarios supported in the AWS Cloud.

The Quick Start also provides the option to deploy into a minimum of two Availability Zones. This option mitigates the loss of quorum in the case of a failure of a single node. However, you can choose this option only in AWS Regions that include two or more Availability Zones. For a current list of Availability Zones, see AWS Global Infrastructure.

To customize UiPath software for your business, IT, and security requirements, consult the UiPath Documentation Portal.

Automatic failover

Deploying this Quick Start with the default parameters configures an Auto Scaling group with UiPath Orchestrator instances and three HAA clustered nodes. The Quick Start implementation supports the following:

  • Protection from the failure of a single instance.

  • Automatic failover between the HAA cluster nodes.

  • Automatic failover between Availability Zones.

However, the default implementation doesn’t provide automatic failover in every case. For example, loss of Availability Zones 1 and 2 (containing the primary and secondary HAA nodes) prevents automatic failover to Availability Zone 3. This is because the cluster fails as it loses quorum. In this scenario, you can follow manual disaster recovery (DR) steps, including rebuilding the cluster that is missing nodes. At least two nodes must be available.

To restore the HAA module, run the following command:

curl -fsSL  http://download.uipath.com/haa/get-haa.sh | bash -s -- -u username-available-node -p password-available-node -j ip-available-node

As a last resort, even if all nodes are lost, you can rebuild the entire HAA cluster. Then, the in-memory database is regenerated from the SQL database.

The Quick Start also provides the option to deploy into a minimum of two Availability Zones. This option mitigates the loss of quorum in the case of a failure of a single node. However, you can choose this option only in AWS Regions that include two or more Availability Zones. For a current list of Availability Zones, see AWS Global Infrastructure.

To customize UiPath software for your business, IT, and security requirements, consult the UiPath Documentation Portal.

Security

Security groups and firewalls

When Amazon EC2 instances are launched, they must be associated with a security group, which acts as a stateful firewall. You have complete control over the security group’s inbound and outbound network traffic. You can build granular rules that are scoped by protocol, port number, and source/destination IP address, or other security groups. By default, all outbound traffic from security group is permitted. Inbound traffic, however, must be configured to allow the appropriate traffic to reach your instances. We recommend that you tightly control inbound traffic. Doing this reduces the attack surface of your EC2 instances yet leaves the following ports open for application communication.

  • HAA ports

security1
Figure 13. HAA ports
  • UiPath Orchestrator and UiPath Robot ports

    • 80, 443 for instances behind ALB

    • 443 for ALB and Robot

    • 3389 for Robot and Orchestrator

  • Other ports and usage

    • 22 for SSH into HAA nodes

    • 1433 for MSSQL

  • EC2 storage gateway ports

    • 2049, 111, 20048, 35790, 49000, 54524 – NFS service

This Quick Start configures the following security groups:

Security group Associated with Inbound source Ports

autoscaling-group-security-group

Auto Scaling group

Private subnets CIDR

Inbound: 80, 443, 3389
Outbound : any ports

db-security-group

MSSQL or RDS databases

Private subnets CIDR

Inbound: 1433
Outbound: any ports

bastion-security-group

Bastion host

0.0.0.0/0

Inbound: 3389
Outbound: any ports

filegateway-security-group

File gateway

VPC CIDR, security CIDR block

Inbound: 2049, 111, 20048, 80, 35790, 49000, 54524, 55481
Outbound: any ports

haa-security-group

High-availability add-on cluster

Private subnets CIDR
VPC CIDR, Security CIDR block

Inbound: 22,8443, 80, 443,9443,1968,3333-3339, 36379-36380, 8001, 9443,8444, 9080, 9081, 8070-8071, 10000-19999, 20000-29999, 53, 5353
Outbound: any ports

alb-security-group

Application Load Balancer

0.0.0.0/0

Inbound: 443
Outbound: 80, 443

For more information, see Security Best Practices.

Security of the AWS infrastructure

AWS provides a set of building blocks, such as Amazon EC2 and Amazon VPC, that you can use to provision your application’s infrastructure. AWS operates under a shared security responsibility model. AWS is responsible for the security of the underlying cloud infrastructure and you are responsible for securing workloads you deploy in AWS. For more information, see Introduction to AWS Security.

Resources

FAQ

Q. I encountered a CREATE_FAILED error when I launched the Quick Start.

A. If AWS CloudFormation fails to create the stack, relaunch the template with Rollback on failure set to Disabled. This setting is under Advanced in the AWS CloudFormation console on the Configure stack options page. With this setting, the stack’s state is retained, and you can troubleshoot the issue.

When you set Rollback on failure to Disabled, you continue to incur AWS charges for this stack. Ensure that you delete stack after troubleshooting.

For more information, see Troubleshooting AWS CloudFormation.

Q. I encountered a size-limitation error when I deployed the AWS CloudFormation templates.

A. Launch the Quick Start templates from the links in this guide or from another S3 bucket. If you deploy the templates from a local copy on your computer or from a location other than an S3 bucket, you might encounter template-size limitations. For more information, see AWS CloudFormation quotas.

Parameter reference

Unless you are customizing the Quick Start templates for your own deployment projects, we recommend that you keep the default settings for the parameters labeled Quick Start S3 bucket name, Quick Start S3 bucket Region, and Quick Start S3 key prefix. Changing these parameter settings automatically updates code references to point to a new Quick Start location. For more information, see the AWS Quick Start Contributor’s Guide.

Launch into a new VPC

Table 1. Availability Zone configuration
Parameter label (name) Default value Description

Availability Zones (AvailabilityZones)

Requires input

Choose up to three Availability Zones to use for the VPC subnets.

Number of Availability Zones (NumberOfAZs)

2

Choose the number of Availability Zones to use in the VPC (1-3). This must match the number of AZs selected in the Availability Zones parameter.

Table 2. Network configuration
Parameter label (name) Default value Description

VPC CIDR (VPCCIDR)

10.0.0.0/16

VPC CIDR block, in format x.x.0.0/16.

Public subnet 1 tag (PublicSubnetTag1)

Network=Public1

(Optional) Tag for public subnet 1, in format Key=Value. Key valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @. Value valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @ * \.

Public subnet 2 tag (PublicSubnetTag2)

Network=Public2

(Optional) Tag for public subnet 2, in format Key=Value. Key valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @. Value valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @ * \.

Public subnet 3 tag (PublicSubnetTag3)

Network=Public3

(Optional) Tag for public subnet 3, in format Key=Value. Key valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @. Value valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @ * \.

Private subnet 1 tag (PrivateSubnetTag1)

Network=Private1

(Optional) Tag for private subnet 1, in format Key=Value. Key valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @. Value valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @ * \.

Private subnet 2 tag (PrivateSubnetTag2)

Network=Private2

(Optional) Tag for private subnet 2, in format Key=Value. Key valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @. Value valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @ * \.

Private subnet 3 tag (PrivateSubnetTag3)

Network=Private3

(Optional) Tag for private subnet 3, in format Key=Value. Key valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @. Value valid characters: A-Z, a-z, 0-9, and + \ - . _ : / @ * \.

Table 3. UiPath Orchestrator instance configuration
Parameter label (name) Default value Description

Instance key pair (KeyPairName)

Requires input

Existing key pair to connect to virtual machine (VM) instances.

Instance type (InstanceType)

m4.xlarge

EC2 instance type.

Table 4. AWS Storage Gateway configuration
Parameter label (name) Default value Description

Storage gateway name (GatewayName)

uipathgateway

S3 file storage gateway name.

NO_LABEL (GatewayTimezone)

US/Eastern

File gateway time zone.

Table 5. DNS or SSL configuration
Parameter label (name) Default value Description

Hosting FQDN (UiPathFQDN)

Requires input

Fully qualified domain name (FQDN) to which UiPath Orchestrator is installed.

ID of Route 53 hosted zone (HostedZoneID)

Requires input

ID of Route 53 hosted zone.

Table 6. High-availability add-on configuration
Parameter label (name) Default value Description

High-availability add-on user name (HAAUser)

Requires input

High-availability add-on user name. Must be a valid email address.

High-availability add-on password (HAAPassword)

Requires input

High-availability add-on password.

High-availability add-on port (HAPort)

10000

High-availability add-on port.

High-availability add-on license key (HAALicense)

Blank string

High-availability add-on license key.

Table 7. RDS database configuration
Parameter label (name) Default value Description

RDS database name (RDSDBName)

uipathdb

UIPath database name.

RDS allocated storage (RDSAllocatedStorage)

200

RDS DB instance storage amount.

Maximum allocated storage (RDSMaxAllocatedStorage)

1000

Maximum storage threshold. The limit to which the DB instance can be autoscaled.

RDS DB user name (RDSUsername)

Requires input

RDS DB username.

RDS DB password (RDSPassword)

Requires input

RDS DB password.

Table 8. UiPath Orchestrator server configuration
Parameter label (name) Default value Description

UiPath Orchestrator version (OrchestratorVersion)

20.10.7

UIPath Orchestrator version.

Number of UiPath Orchestrator instances (OrchestratorInstanceCount)

2

Number of UiPath Orchestrator instances (1–20).

UiPath Orchestrator license key (OrchestratorLicense)

Blank string

UiPath Orchestrator license key or trial key.

UiPath Orchestrator password (OrchestratorPassword)

Requires input

UiPath Orchestrator administrator password.

Table 9. Quick Start S3 bucket configuration
Parameter label (name) Default value Description

Template-hosting S3 bucket (QSS3BucketName)

aws-quickstart

Name of the S3 bucket for your copy of the Quick Start assets. Keep the default name unless you are customizing the template. Changing the name updates code references to point to a new Quick Start location. This name can include numbers, lowercase letters, uppercase letters, and hyphens, but do not start or end with a hyphen (-). See https://aws-quickstart.github.io/option1.html.

Template folder (QSS3KeyPrefix)

quickstart-uipath-robot/

S3 key prefix that is used to simulate a directory for your copy of the Quick Start assets. Keep the default prefix unless you are customizing the template. Changing this prefix updates code references to point to a new Quick Start location. This prefix can include numbers, lowercase letters, uppercase letters, hyphens (-), and forward slashes (/). See https://docs.aws.amazon.com/AmazonS3/latest/dev/UsingMetadata.html and https://aws-quickstart.github.io/option1.html.

Launch into an existing VPC

Table 10. Network configuration
Parameter label (name) Default value Description

VPC CIDR (VPCCIDR)

10.0.0.0/16

VPC CIDR block, in format x.x.0.0/16.

VPC ID (VPCID)

Requires input

VPC ID

Public subnet IDs (PublicSubnetIDs)

Requires input

List of public subnet IDs.

Private subnet IDs (PrivateSubnetIDs)

Requires input

List of private subnet IDs.

Table 11. UiPath Orchestrator instance configuration
Parameter label (name) Default value Description

Instance key pair (KeyPairName)

Requires input

Existing key pair to connect to virtual machine (VM) instances.

Instance type (InstanceType)

m4.xlarge

EC2 instance type

Table 12. AWS Storage Gateway configuration
Parameter label (name) Default value Description

Storage gateway name (GatewayName)

uipathgateway

Name of S3 File Storage Gateway.

NO_LABEL (GatewayTimezone)

US/Eastern

File gateway time zone.

Table 13. DNS or SSL Configuration
Parameter label (name) Default value Description

Hosting FQDN (UiPathFQDN)

Requires input

Fully qualified domain name (FQDN) to which UiPath Orchestrator is installed.

Route 53 hosted zone ID (HostedZoneID)

Requires input

The Route 53 hosted zone ID.

Table 14. High Availability add-on Configuration
Parameter label (name) Default value Description

High-availability add-on user name (HAAUser)

Requires input

High-aailability add-on user name. Must be a valid email address.

High-availability add-on password (HAAPassword)

Requires input

High-availability add-on password.

High-availability add-on port (HAPort)

10000

High-availability add-on port.

High-availability add-on license key (HAALicense)

Blank string

High-availability add-on license key.

Table 15. RDS Database Configuration
Parameter label (name) Default value Description

RDS database name (RDSDBName)

uipathdb

UIPath database name.

RDS allocated storage (RDSAllocatedStorage)

200

RDS DB instance storage amount.

Maximum allocated storage (RDSMaxAllocatedStorage)

1000

Maximum storage threshold. The limit to which the DB instance can be autoscaled.

RDS DB user name (RDSUsername)

Requires input

RDS DB username.

RDS DB Password (RDSPassword)

Requires input

RDS DB password.

Table 16. UiPath Orchestrator server configuration
Parameter label (name) Default value Description

UiPath Orchestrator version (OrchestratorVersion)

20.10.7

UIPath Orchestrator version.

Number of UiPath Orchestrator instances (OrchestratorInstanceCount)

2

Number of UiPath Orchestrator instances (1–20).

UiPath Orchestrator license key (OrchestratorLicense)

Blank string

UiPath Orchestrator license key or trial key.

UiPath Orchestrator password (OrchestratorPassword)

Requires input

UiPath Orchestrator administrator password.

Table 17. Quick Start S3 bucket configuration
Parameter label (name) Default value Description

Template-hosting S3 bucket (QSS3BucketName)

aws-quickstart

Name of the S3 bucket for your copy of the Quick Start assets. Keep the default name unless you are customizing the template. Changing the name updates code references to point to a new Quick Start location. This name can include numbers, lowercase letters, uppercase letters, and hyphens, but do not start or end with a hyphen (-). See https://aws-quickstart.github.io/option1.html.

Template folder (QSS3KeyPrefix)

quickstart-uipath-robot/

S3 key prefix that is used to simulate a directory for your copy of the Quick Start assets. Keep the default prefix unless you are customizing the template. Changing this prefix updates code references to point to a new Quick Start location. This prefix can include numbers, lowercase letters, uppercase letters, hyphens (-), and forward slashes (/). See https://docs.aws.amazon.com/AmazonS3/latest/dev/UsingMetadata.html and https://aws-quickstart.github.io/option1.html.

Send us feedback

To post feedback, submit feature ideas, or report bugs, use the Issues section of the GitHub repository for this Quick Start. To submit code, see the Quick Start Contributor’s Guide.

Quick Start reference deployments

GitHub repository

Visit our GitHub repository to download the templates and scripts for this Quick Start, to post your comments, and to share your customizations with others.


Notices

This document is provided for informational purposes only. It represents AWS’s current product offerings and practices as of the date of issue of this document, which are subject to change without notice. Customers are responsible for making their own independent assessment of the information in this document and any use of AWS’s products or services, each of which is provided “as is” without warranty of any kind, whether expressed or implied. This document does not create any warranties, representations, contractual commitments, conditions, or assurances from AWS, its affiliates, suppliers, or licensors. The responsibilities and liabilities of AWS to its customers are controlled by AWS agreements, and this document is not part of, nor does it modify, any agreement between AWS and its customers.

The software included with this paper is licensed under the Apache License, version 2.0 (the "License"). You may not use this file except in compliance with the License. A copy of the License is located at http://aws.amazon.com/apache2.0/ or in the accompanying "license" file. This code is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either expressed or implied. See the License for specific language governing permissions and limitations.
