Remote Desktop Gateway on the AWS Cloud

Quick Start Reference Deployment

QS

January 2021
Dave May and Santiago Cardenas, Solutions Architects, AWS Quick Start team

Visit our GitHub repository for source files and to post feedback, report bugs, or submit feature ideas for this Quick Start.

This Quick Start was created by Microsoft in collaboration with Amazon Web Services (AWS). Quick Starts are automated reference deployments that use AWS CloudFormation templates to deploy key technologies on AWS, following AWS best practices.

Overview

This Quick Start is for users who require one or more Microsoft Remote Desktop servers to provide remote access to their environments.

Amazon may share user-deployment information with the AWS Partner that collaborated with AWS on the Quick Start.

Remote Desktop Gateway on AWS

AWS provides a comprehensive set of services and tools for deploying Microsoft Windows-based workloads on its highly reliable and secure cloud infrastructure. Remote Desktop Gateway uses Remote Desktop Protocol (RDP) over HTTPS to establish a secure, encrypted connection between remote users on the internet and Windows-based EC2 instances, without needing to configure a virtual private network (VPN) connection. This helps reduce the attack surface on your Windows-based instances while providing a remote administration solution for administrators.

This Quick Start automatically deploys and configures an RD Gateway infrastructure in the AWS Cloud from scratch, so you can securely administer your Windows-based, Amazon EC2 fleet using RDP over HTTPS. You can use the AWS CloudFormation templates included with the Quick Start to deploy a fully configured RD Gateway infrastructure in a new or existing VPC in your AWS account. You can also use the AWS CloudFormation templates as a starting point for your own implementation.

We’ve also published a set of Quick Starts that provide solutions for deploying common Microsoft workloads, such as Microsoft Active Directory, Microsoft SharePoint, Microsoft Exchange, and Microsoft SQL Server, on AWS. Those Quick Starts include the RD Gateway deployment and architecture described in this guide. You can use them to deploy RD Gateway along with the additional Microsoft workload. For example, for an automated deployment that includes Active Directory Domain Services and RD gateways, see the AWS Quick Start for Active Directory Domain Services.

Implementing the RD Gateway on the AWS Cloud is an advanced topic. We recommend reviewing the Microsoft documentation for Windows Server 2016 and the AWS documentation Connecting to Your Windows Instance.

This guide focuses on infrastructure configuration topics that require careful consideration when you are planning and deploying an RD Gateway infrastructure on the AWS Cloud. It doesn’t cover general Windows Server installation and software configuration tasks. For general software configuration guidance and best practices, consult the Microsoft product documentation.

AWS costs

You are responsible for the cost of the AWS services and any third-party licenses used while running this Quick Start. There is no additional cost for using the Quick Start.

The AWS CloudFormation templates for Quick Starts include configuration parameters that you can customize. Some of the settings, such as the instance type, affect the cost of deployment. For cost estimates, see the pricing pages for each AWS service you use. Prices are subject to change.

After you deploy the Quick Start, create AWS Cost and Usage Reports to deliver billing metrics to an Amazon Simple Storage Service (Amazon S3) bucket in your account. These reports provide cost estimates based on usage throughout each month and aggregate the data at the end of the month. For more information, see What are AWS Cost and Usage Reports?

Software licenses

This product deploys one or more Amazon Elastic Compute Cloud (Amazon EC2) instances running Microsoft Windows Server. The Windows Server licenses are provided by Amazon.

Architecture

Deploying this Quick Start for a new virtual private cloud (VPC) with default parameters builds the following Remote Desktop Gateway environment in the AWS Cloud.

Deploying this Quick Start for a new VPC with default parameters builds the following RD Gateway environment in the AWS Cloud.

Figure 1. Quick Start architecture for RD Gateway on AWS

The Quick Start sets up the following:

  • A highly available architecture that spans two Availability Zones.*

  • A VPC configured with public and private subnets according to AWS best practices, to provide you with your own virtual network on AWS.*

  • An internet gateway to allow access to the internet. This gateway is used by the RD Gateway instances to send and receive traffic.*

  • Managed network address translation (NAT) gateways to allow outbound internet access for resources in the private subnets.*

  • In each public subnet, up to four RD Gateway instances in an Auto Scaling group to provide secure remote access to instances in the private subnets. Each instance is assigned an Elastic IP address so it’s reachable directly from the internet.

  • A Network Load Balancer to provide RDP access to the RD Gateway instances.

  • A security group for Windows-based instances that will host the RD Gateway role, with an ingress rule permitting TCP port 3389 from your administrator IP address. After deployment, you’ll modify the security group ingress rules to configure administrative access through TCP port 443 instead.

  • An empty application tier for instances in private subnets. If more tiers are required, you can create additional private subnets with unique CIDR ranges.

  • AWS Secrets Manager to securely store credentials used for accessing the RD Gateway instances.

  • AWS Systems Manager to automate the deployment of the RD Gateway Auto Scaling group.

*The template that deploys the Quick Start into an existing VPC skips the tasks marked by asterisks and prompts you for your existing VPC configuration.

The Quick Start also installs a self-signed SSL certificate and configures RD CAP and RD RAP policies.

Planning the deployment

Specialized knowledge

This deployment requires a moderate level of familiarity with AWS services. If you’re new to AWS, see Getting Started Resource Center and AWS Training and Certification. These sites provide materials for learning how to design, deploy, and operate your infrastructure and applications on the AWS Cloud.

This Quick Start assumes familiarity with RD Gateway.

AWS account

If you don’t already have an AWS account, create one at https://aws.amazon.com by following the on-screen instructions. Part of the sign-up process involves receiving a phone call and entering a PIN using the phone keypad.

Your AWS account is automatically signed up for all AWS services. You are charged only for the services you use.

Technical requirements

Before you launch the Quick Start, review the following information and ensure that your account is properly configured. Otherwise, deployment might fail.

Resource quotas

If necessary, request service quota increases for the following resources. You might request quota increases to avoid exceeding the default limits for any resources that are shared across multiple deployments. The Service Quotas console displays your usage and quotas for some aspects of some services. For more information, see What is Service Quotas? and AWS service quotas.

Resource This deployment uses

VPCs

1

Elastic IP addresses

1

AWS Identity and Access Management (IAM) security groups

1

IAM roles

1

Auto Scaling groups

1

EC2 instances

1-4

Supported Regions

The services deployed by this Quick Start are available in all AWS Regions.

Certain Regions are available on an opt-in basis. For more information, see Managing AWS Regions.

EC2 key pairs

Make sure that at least one Amazon EC2 key pair exists in your AWS account in the Region where you plan to deploy the Quick Start. Make note of the key pair name. You need it during deployment. To create a key pair, see Amazon EC2 key pairs and Linux instances.

For testing or proof-of-concept purposes, we recommend creating a new key pair instead of using one that’s already being used by a production instance.

IAM permissions

Before launching the Quick Start, you must sign in to the AWS Management Console with IAM permissions for the resources that the templates deploy. The AdministratorAccess managed policy within IAM provides sufficient permissions, although your organization may choose to use a custom policy with more restrictions. For more information, see AWS managed policies for job functions.

Deployment options

This Quick Start provides three deployment options:

  • Deploy RD Gateway into a new VPC (end-to-end deployment) This option builds a new AWS environment consisting of the VPC, subnets, NAT gateways, security groups, and other infrastructure components, and then deploys RD Gateway into this new VPC.

  • Deploy RD Gateway into an existing VPC. This option provisions standalone RD Gateway instances in your existing AWS infrastructure.

  • Deploy domain-joined RD Gateway into an existing VPC. This is similar to the second option, except that it provides domain-joined RD Gateway instances in the existing VPC, and provides a few additional parameters for customizing this configuration.

The Quick Start provides separate templates for these three options. You can also configure CIDR blocks, instance types, and RD Gateway settings, as discussed later in the deployment steps.

Deployment steps

Sign in to your AWS account

  1. Sign in to your AWS account at https://aws.amazon.com with an IAM user role that has the necessary permissions. For details, see Planning the deployment earlier in this guide.

  2. Ensure that your AWS account is configured correctly, as discussed in the Technical requirements section.

Launch the Quick Start

You are responsible for the cost of the AWS services used while running this Quick Start reference deployment. There is no additional cost for using this Quick Start. For full details, see the pricing pages for each AWS service used by this Quick Start. Prices are subject to change.
  1. Sign in to your AWS account, and choose one of the following options to launch the AWS CloudFormation template. For help with choosing an option, see Deployment options earlier in this guide.

Deploy Remote Desktop Gateway into a new VPC on AWS

View template

Deploy a standalone Remote Desktop Gateway into an existing VPC on AWS

View template

Deploy a domain-joined Remote Desktop Gateway into an existing VPC on AWS

View template

If you deploy RD Gateway into an existing VPC, ensure that your VPC has two private subnets in different Availability Zones for the workload instances, and that the subnets aren’t shared. This Quick Start doesn’t support shared subnets. These subnets require NAT gateways in their route tables, to allow the instances to download packages and software without exposing them to the internet.

Also, ensure that the domain name option in the DHCP options is configured as explained in DHCP options sets. You provide your VPC settings when you launch the Quick Start.

Each deployment takes about 20 minutes to complete.

  1. Check the AWS Region that’s displayed in the upper-right corner of the navigation bar, and change it if necessary. This Region is where the network infrastructure for RD Gateway is built. The template is launched in the us-east-1 Region by default.

  1. On the Create stack page, keep the default setting for the template URL, and then choose Next.

  2. On the Specify stack details page, change the stack name if needed. Review the parameters for the template. Provide values for the parameters that require input. For all other parameters, review the default settings and customize them as necessary.

+

+ . On the Configure stack options page, you can specify tags (key-value pairs) for resources in your stack and set advanced options. When you’re finished, choose Next. . On the Review page, review and confirm the template settings. Under Capabilities, select the two check boxes to acknowledge that the template creates IAM resources and might require the ability to automatically expand macros. . Choose Create stack to deploy the stack. . Monitor the status of the stack. When the status is CREATE_COMPLETE, the RD Gateway deployment is ready. . Use the values displayed in the Outputs tab for the stack, as shown in Figure 2, to view the created resources.

cfn_outputs
Figure 2. RD Gateway outputs after successful deployment

Best practices for using RD Gateway on AWS

The Principle of Least Privilege

When considering remote administrative access to your environment, it is important to follow the principle of least privilege. This principle refers to users having the fewest possible permissions necessary to perform their job functions. This helps reduce the attack surface of your environment, making it much harder for an adversary to exploit. An attack surface can be defined as the set of exploitable vulnerabilities in your environment, including the network, software, and users who are involved in the ongoing operation of the system.

Following the principle of least privilege, we recommend reducing the attack surface of your environment by exposing the absolute minimal set of ports to the network while also restricting the source network or IP address that will have access to your EC2 instances.

In addition to the functionality that exists in the Microsoft platform, there are several AWS capabilities to help you implement the principle of least privilege, such as subnets, security groups, and trusted ingress CIDR blocks.

VPC configuration

Amazon VPC lets you provision a private, isolated section of the AWS Cloud where you can launch AWS resources in a virtual network that you define. With Amazon VPC, you can define a virtual network topology closely resembling a traditional network that you might operate on your own premises. You have complete control over your virtual networking environment, including selection of your own IP address range, creation of subnets, and configuration of route tables and network gateways.

When deploying a Windows-based architecture on the AWS Cloud, we recommend an VPC configuration that supports the following requirements:

  • Critical workloads should be placed in a minimum of two Availability Zones to provide high availability.

  • Instances should be placed into individual tiers. For example, in a Microsoft SharePoint deployment, you should have separate tiers for web servers, application servers, database servers, and domain controllers. Traffic between these groups can be controlled to adhere to the principle of least privilege.

  • Internal application servers and other non-internet facing servers should be placed in private subnets to prevent direct access to these instances from the internet.

  • RD gateways should be deployed into public subnets in each Availability Zone for remote administration. Other components, such as reverse proxy servers, can also be placed into these public subnets if needed.

This Quick Start supports these best practices, as illustrated earlier in this guide. For details on the VPC design used in this Quick Start, see the Quick Start for building a modular and scalable virtual network architecture with Amazon VPC.

Network Access Control Lists

A network access control list (ACL) is a set of permissions that can be attached to any network subnet in a VPC to provide stateless filtering of traffic. Network ACLs can be used for inbound or outbound traffic and provide an effective way to blacklist a CIDR block or individual IP addresses. These ACLs can contain ordered rules to allow or deny traffic based on IP protocol, service port, or source or destination IP address. Figure 3 shows the default ACL configuration for a VPC subnet. This configuration is used for the subnets in the Quick Start architecture.

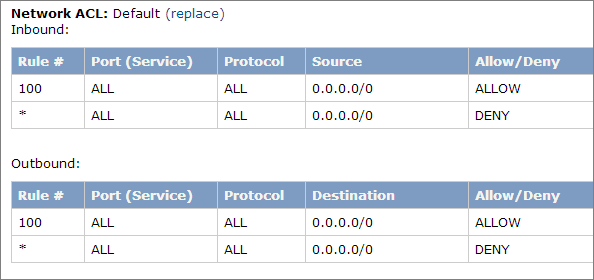

Figure 3. Default network ACL configuration for a VPC subnet

You may choose to keep the default network ACL configuration, or you may choose to lock it down with more specific rules to restrict traffic between subnets at the network level. For example, you could set a rule that would allow inbound administrative traffic on TCP port 3389 from a specific set of IP addresses. In either case, you’ll also need to implement security group rules to permit access from users connecting to RD gateways and between tiered groups of EC2 instances.

Security groups

All EC2 instances are required to belong to one or more security groups. Security groups allow you to set policies to control open ports and provide isolation between application tiers. In a VPC, every instance runs behind a stateful firewall with all ports closed by default. The security group contains rules responsible for opening inbound and outbound ports on that firewall. While security groups act as an instance-level firewall, they can also be associated with multiple instances, providing isolation between application tiers in your environment. For example, you can create a security group for all your web servers that will allow traffic on TCP port 3389, but only from members of the security group containing your RD Gateway servers. This is illustrated in Figure 4.

Figure 4. Security groups for RD Gateway administrative access

Notice that inbound connections from the internet are only permitted over TCP port 443 to the RD gateways. The RD gateways have an Elastic IP address assigned and have direct access to the internet. The remaining Windows instances are deployed into private subnets and are assigned private IP addresses only. Security group rules allow only the RD gateways to initiate inbound connections for remote administration to TCP port 3389 for instances in the private subnets.

In this architecture, RDP connections are established over HTTPS to the RD gateway and proxied to backend instances on the standard RDP TCP port 3389. This configuration helps you reduce the attack surface on your Windows-based instances while allowing administrators to establish connections to all your instances through a single gateway.

It’s possible to provide remote administrative access to all your Windows-based instances through one RD gateway, but we recommend placing gateways in each Availability Zone for redundancy. The Quick Start implements this best practice, as illustrated in Figure 5.

Initial Remote Administration Architecture

In an initial RD gateway configuration, the servers in the public subnet will need an inbound security group rule permitting TCP port 3389 from the administrator’s source IP address or subnet. Windows instances sitting behind the RD Gateway in a private subnet will be in their own isolated tier. For example, a group of web server instances in a private subnet may be associated with their own web tier security group. This security group will need an inbound rule allowing connections from the RD Gateway on TCP port 3389.

Using this architecture, an administrator can use a traditional RDP connection to an RD gateway to configure the local server. The RD gateway can also be used as a jump box; that is, when an RDP connection is established to the desktop of the RD gateway, an administrator can start a new RDP client session to initiate a connection to an instance in a private subnet, as illustrated in Figure 1.

Figure 5. Initial architecture for remote administration

Although this architecture works well for initial administration, it is not recommended for the long term. To further secure connections and reduce the number of RDP sessions required to administer the servers in the private subnets, the inbound rule should be changed to permit TCP port 443, and the RD gateway service should be installed and configured with an SSL certificate, and connection and authorization policies.

The Quick Start sets up a standard TCP port 3389 connection from the administrator’s IP address. You’ll need to follow the post-deployment steps to modify the security group for RD Gateway to use a single inbound rule permitting TCP port 443, as illustrated in Figure 2. This modification will allow a Transport Layer Security (TLS) encrypted RDP connection to be proxied through the gateway over TCP port 443 directly to one or more Windows-based instances in private subnets on TCP port 3389. This configuration increases the security of the connection and also prevents the need to initiate an RDP session to the desktop of the RD gateway.

Figure 6. Architecture for RD Gateway administrative access

SSL Certificates

The RD Gateway role uses Transport Layer Security (TLS) to encrypt communications over the internet between administrators and gateway servers. To support TLS, a valid X.509 SSL certificate must be installed on each RD gateway. Certificates can be acquired in a number of ways, including:

  • Your own PKI infrastructure, such as a Microsoft Enterprise Certificate Authority (CA)

  • Certificates issued by a public CA, such as Verisign or Digicert

  • Self-signed certificates

For smaller test environments, implementing a self-signed certificate is a straightforward process that helps you get up and running quickly. This Quick Start automatically generates a self-signed certificate for RD Gateway.

However, if you have a large number of varying administrative devices that need to establish a connection to your gateways, we recommend using a public certificate.

In order for an RDP client to establish a secure connection with an RD gateway, the following certificate and DNS requirements must be met:

  • The issuing CA of the certificate installed on the gateway must be trusted by the RDP client. For example, the root CA certificate must be installed in the client machine’s Trusted Root Certification Authorities store.

  • The subject name used on the certificate installed on the gateway must match the DNS name used by the client to connect to the server; for example, rdgw1.example.com.

  • The client must be able to resolve the host name (for example, rdgw1.example.com) to the Elastic IP address of the RD Gateway. This will require a Host (A) record in DNS.

There are various considerations when choosing the right CA to obtain an SSL certificate. For example, a public certificate may be ideal since the issuing CA will be widely trusted by the majority of client devices that need to connect to your gateways. On the other hand, you may choose to utilize your own PKI infrastructure to ensure that only the machines that are part of your organization will trust the issuing CA.

Connection and Resource Authorization Policies

Users must meet specific requirements in order to connect to RD Gateway instances:

  • Connection authorization policies – Remote Desktop connection authorization policies (RD CAPs) allow you to specify who can connect to an RD Gateway instance. For example, you can select a group of users from your domain, such as Domain Admins.

  • Resource authorization policies – Remote Desktop resource authorization policies (RD RAPs) allow you to specify the internal Windows-based instances that remote users can connect to through an RD Gateway instance. For example, you can choose specific domain-joined computers, which administrators can connect to through the RD Gateway.

This Quick Start automatically sets up connection and resource authorization policies.

FAQ

Q. I encountered a CREATE_FAILED error when I launched the Quick Start.

A. If AWS CloudFormation fails to create the stack, we recommend that you relaunch the template with Rollback on failure set to No. (This setting is under Advanced in the AWS CloudFormation console, Options page.) With this setting, the stack’s state is retained and the instance is left running, so you can troubleshoot the issue. (For Windows, look at the log files in %ProgramFiles%\Amazon\EC2ConfigService and C:\cfn\log.)

Important: When you set Rollback on failure to No, you continue to incur AWS charges for this stack. Be sure to delete the stack when you finish troubleshooting.

For additional information, see Troubleshooting AWS CloudFormation on the AWS website.

Q. I encountered a size limitation error when I deployed the AWS CloudFormation templates.

A. Launch the Quick Start templates from the links in this guide or from another S3 bucket. If you deploy the templates from a local copy on your computer or from a location other than an S3 bucket, you might encounter template size limitations. For more information about AWS CloudFormation quotas, see AWS CloudFormation quotas in the AWS documentation.

Parameter reference

Unless you are customizing the Quick Start templates for your own deployment projects, we recommend that you keep the default settings for the parameters labeled Quick Start S3 bucket name, Quick Start S3 bucket Region, and Quick Start S3 key prefix. Changing these parameter settings automatically updates code references to point to a new Quick Start location. For more information, see the AWS Quick Start Contributor’s Guide.

Parameters for deploying into a new VPC

Table 1. Network configuration
Parameter label (name) Default value Description

Availability Zones (AvailabilityZones)

Requires input

List of Availability Zones (AZs) to use for the subnets in the VPC. Note: The logical order is preserved and only 2 AZs are used for this deployment.

VPC tenancy (VPCTenancy)

default

The allowed tenancy of instances launched into the VPC.

VPC CIDR (VPCCIDR)

10.0.0.0/16

CIDR block for the VPC.

Private subnet 1 CIDR (PrivateSubnet1CIDR)

10.0.0.0/19

CIDR block for private subnet 1 located in Availability Zone 1.

Private subnet 2 CIDR (PrivateSubnet2CIDR)

10.0.32.0/19

CIDR block for private subnet 2 located in Availability Zone 2.

Public subnet 1 CIDR (PublicSubnet1CIDR)

10.0.128.0/20

CIDR Block for the public DMZ subnet 1 located in Availability Zone 1.

Public subnet 2 CIDR (PublicSubnet2CIDR)

10.0.144.0/20

CIDR Block for the public DMZ subnet 2 located in Availability Zone 2.

Allowed Remote Desktop Gateway external access CIDR (RDGWCIDR)

Requires input

Allowed CIDR block for external access to the Remote Desktop Gateways.

Table 2. Amazon EC2 configuration
Parameter label (name) Default value Description

Key pair name (KeyPairName)

Requires input

Public/private key pairs allow you to securely connect to your instance after it launches.

Remote Desktop Gateway instance type (RDGWInstanceType)

t3.2xlarge

Amazon EC2 instance type for the Remote Desktop Gateway instances.

Table 3. Microsoft Remote Desktop Gateway configuration
Parameter label (name) Default value Description

Number of RDGW hosts (NumberOfRDGWHosts)

1

Enter the number of Remote Desktop Gateway hosts to create.

Admin user name (AdminUser)

StackAdmin

User name for the new local administrator account.

Admin password (AdminPassword)

Requires input

Password for the administrative account. Must be at least 8 characters containing letters, numbers and symbols.

Table 4. AWS Quick Start configuration
Parameter label (name) Default value Description

Quick Start S3 bucket name (QSS3BucketName)

aws-quickstart

Name of the S3 bucket for your copy of the Quick Start assets. Keep the default name unless you are customizing the template. Changing the name updates code references to point to a new Quick Start location. This name can include numbers, lowercase letters, uppercase letters, and hyphens, but do not start or end with a hyphen (-). See https://aws-quickstart.github.io/option1.html.

Quick Start S3 key prefix (QSS3KeyPrefix)

quickstart-microsoft-rdgateway/

S3 key prefix that is used to simulate a directory for your copy of the Quick Start assets. Keep the default prefix unless you are customizing the template. Changing this prefix updates code references to point to a new Quick Start location. This prefix can include numbers, lowercase letters, uppercase letters, hyphens (-), and forward slashes (/). See https://docs.aws.amazon.com/AmazonS3/latest/dev/UsingMetadata.html and https://aws-quickstart.github.io/option1.html.

Quick Start S3 bucket Region (QSS3BucketRegion)

us-east-1

Region of staging bucket (BucketName).

Parameters for launching into an existing VPC (domain-joined)

Table 5. Network configuration
Parameter label (name) Default value Description

VPC ID (VPCID)

Requires input

ID of the VPC (for example, vpc-0343606e).

Public subnet 1 ID (PublicSubnet1ID)

Requires input

ID of the public subnet 1 that you want to provision the first Remote Desktop Gateway into (for example, subnet-a0246dcd).

Public subnet 2 ID (PublicSubnet2ID)

Requires input

ID of the public subnet 2 you want to provision the second Remote Desktop Gateway into (for example, subnet-e3246d8e).

Allowed Remote Desktop Gateway external access CIDR (RDGWCIDR)

Requires input

Allowed CIDR Block for external access to the Remote Desktop Gateways.

Table 6. Amazon EC2 configuration
Parameter label (name) Default value Description

Key pair name (KeyPairName)

Requires input

Public/private key pairs allow you to securely connect to your instance after it launches.

Remote Desktop Gateway instance type (RDGWInstanceType)

t3.2xlarge

Amazon EC2 instance type for the Remote Desktop Gateway instances.

SSM parameter to grab latest AMI ID (LatestAmiId)

/aws/service/ami-windows-latest/Windows_Server-2016-English-Full-Base

NO_DESCRIPTION

Table 7. Microsoft Active Directory configuration
Parameter label (name) Default value Description

Domain DNS name (DomainDNSName)

Requires input

Fully qualified domain name (FQDN) such as example.com.

Domain NetBIOS name (DomainNetBIOSName)

Requires input

NetBIOS name of the domain (up to 15 characters) for users of earlier versions of Windows (for example, EXAMPLE).

Domain member security group ID (DomainMemberSGID)

Requires input

ID of the domain member security group (for example, sg-7f16e910).

Domain admin user name (DomainAdminUser)

Admin

User name for the domain administrator. This parameter is separate from the default administrator account.

Domain admin password (DomainAdminPassword)

Requires input

Password for the domain admin user. Must be at least 8 characters containing letters, numbers and symbols.

Table 8. Microsoft Remote Desktop Gateway configuration
Parameter label (name) Default value Description

Number of RDGW hosts (NumberOfRDGWHosts)

1

Enter the number of Remote Desktop Gateway hosts to create.

Table 9. AWS Quick Start configuration
Parameter label (name) Default value Description

Quick Start S3 bucket name (QSS3BucketName)

aws-quickstart

Name of the S3 bucket for your copy of the Quick Start assets. Keep the default name unless you are customizing the template. Changing the name updates code references to point to a new Quick Start location. This name can include numbers, lowercase letters, uppercase letters, and hyphens, but do not start or end with a hyphen (-). See https://aws-quickstart.github.io/option1.html.

Quick Start S3 key prefix (QSS3KeyPrefix)

quickstart-microsoft-rdgateway/

S3 key prefix that is used to simulate a directory for your copy of the Quick Start assets. Keep the default prefix unless you are customizing the template. Changing this prefix updates code references to point to a new Quick Start location. This prefix can include numbers, lowercase letters, uppercase letters, hyphens (-), and forward slashes (/). See https://docs.aws.amazon.com/AmazonS3/latest/dev/UsingMetadata.html and https://aws-quickstart.github.io/option1.html.

Quick Start S3 bucket Region (QSS3BucketRegion)

us-east-1

'AWS Region where the Quick Start S3 bucket (QSS3BucketName) is hosted. Keep the default Region unless you are customizing the template. Changing this Region updates code references to point to a new Quick Start location. When using your own bucket, specify the Region. See https://aws-quickstart.github.io/option1.html.'

Parameters for launching into an existing VPC (standalone)

Table 10. Network configuration
Parameter label (name) Default value Description

VPC ID (VPCID)

Requires input

ID of the VPC (for example, vpc-0343606e).

Public subnet 1 ID (PublicSubnet1ID)

Requires input

ID of the public subnet 1 that you want to provision the first Remote Desktop Gateway into (for example, subnet-a0246dcd).

Public subnet 2 ID (PublicSubnet2ID)

Requires input

ID of the public subnet 2 you want to provision the second Remote Desktop Gateway into (for example, subnet-e3246d8e).

Allowed Remote Desktop Gateway external access CIDR (RDGWCIDR)

Requires input

Allowed CIDR Block for external access to the Remote Desktop Gateways.

Table 11. Amazon EC2 configuration
Parameter label (name) Default value Description

Key pair name (KeyPairName)

Requires input

Public/private key pairs allow you to securely connect to your instance after it launches.

Remote Desktop Gateway instance type (RDGWInstanceType)

t3.2xlarge

Amazon EC2 instance type for the Remote Desktop Gateway instances.

SSM parameter to grab latest AMI ID (LatestAmiId)

/aws/service/ami-windows-latest/Windows_Server-2016-English-Full-Base

NO_DESCRIPTION

Table 12. Microsoft Remote Desktop Gateway configuration
Parameter label (name) Default value Description

Number of RDGW hosts (NumberOfRDGWHosts)

1

Enter the number of Remote Desktop Gateway hosts to create.

Admin user name (AdminUser)

StackAdmin

User name for the new local administrator account.

Admin password (AdminPassword)

Requires input

Password for the administrative account. Must be at least 8 characters containing letters, numbers, and symbols.

Domain DNS name (DomainDNSName)

example.com

Fully qualified domain name (FQDN), such as example.com.

Table 13. AWS Quick Start configuration
Parameter label (name) Default value Description

Quick Start S3 bucket name (QSS3BucketName)

aws-quickstart

Name of the S3 bucket for your copy of the Quick Start assets. Keep the default name unless you are customizing the template. Changing the name updates code references to point to a new Quick Start location. This name can include numbers, lowercase letters, uppercase letters, and hyphens, but do not start or end with a hyphen (-). See https://aws-quickstart.github.io/option1.html.

Quick Start S3 key prefix (QSS3KeyPrefix)

quickstart-microsoft-rdgateway/

S3 key prefix that is used to simulate a directory for your copy of the Quick Start assets. Keep the default prefix unless you are customizing the template. Changing this prefix updates code references to point to a new Quick Start location. This prefix can include numbers, lowercase letters, uppercase letters, hyphens (-), and forward slashes (/). See https://docs.aws.amazon.com/AmazonS3/latest/dev/UsingMetadata.html and https://aws-quickstart.github.io/option1.html.

Quick Start S3 bucket Region (QSS3BucketRegion)

us-east-1

AWS Region where the Quick Start S3 bucket (QSS3BucketName) is hosted. Keep the default Region unless you are customizing the template. Changing this Region updates code references to point to a new Quick Start location. When using your own bucket, specify the Region. See https://aws-quickstart.github.io/option1.html.

Send us feedback

To post feedback, submit feature ideas, or report bugs, use the Issues section of the GitHub repository for this Quick Start. To submit code, see the Quick Start Contributor’s Guide.

Quick Start reference deployments

GitHub repository

Visit our GitHub repository to download the templates and scripts for this Quick Start, to post your comments, and to share your customizations with others.


Notices

This document is provided for informational purposes only. It represents AWS’s current product offerings and practices as of the date of issue of this document, which are subject to change without notice. Customers are responsible for making their own independent assessment of the information in this document and any use of AWS’s products or services, each of which is provided “as is” without warranty of any kind, whether expressed or implied. This document does not create any warranties, representations, contractual commitments, conditions, or assurances from AWS, its affiliates, suppliers, or licensors. The responsibilities and liabilities of AWS to its customers are controlled by AWS agreements, and this document is not part of, nor does it modify, any agreement between AWS and its customers.

The software included with this paper is licensed under the Apache License, version 2.0 (the "License"). You may not use this file except in compliance with the License. A copy of the License is located at http://aws.amazon.com/apache2.0/ or in the accompanying "license" file. This code is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either expressed or implied. See the License for specific language governing permissions and limitations.
